Plain Bore Yokes

What Are Plain Bore Yokes?

Plain bore yokes are essential components in mechanical power transmission systems, designed to connect shafts to universal joints or other coupling devices. These yokes feature a smooth, unthreaded bore that allows for precise mounting and alignment, ensuring efficient torque transfer and reduced vibration in various industrial applications. Made from high-strength materials, they offer durability and reliability in demanding environments.

Key Product Parameters

Our plain bore yokes are engineered to meet strict industry standards, with detailed specifications provided below for easy reference.

Material Composition

  • Carbon Steel: Grade 1045 or equivalent, offering high tensile strength and wear resistance.
  • Stainless Steel: Grade 304 or 316, providing corrosion resistance for harsh environments.
  • Alloy Steel: Heat-treated options for enhanced durability and load capacity.

Dimensional Specifications

Bore Diameter (inches) Outside Diameter (inches) Length (inches) Weight (lbs) Max Torque Capacity (lb-ft)
0.5 1.5 2.0 0.5 50
1.0 2.5 3.0 1.2 120
1.5 3.5 4.0 2.5 250
2.0 4.5 5.0 4.0 400
2.5 5.5 6.0 6.0 600

Performance Features

  • Surface Finish: Machined to a smooth finish with tolerances within ±0.001 inches for precise fit.
  • Hardness: Rockwell C scale ratings from 20 to 45, depending on material and treatment.
  • Temperature Range: Operates effectively from -40°F to 500°F (-40°C to 260°C).
  • Load Capacity: Designed for dynamic and static loads, with safety factors of 2:1 or higher.

Applications of Plain Bore Yokes

Plain bore yokes are widely used in industries such as automotive, aerospace, manufacturing, and agriculture. Common applications include drive shafts, conveyor systems, pumps, and heavy machinery, where they facilitate smooth power transmission and accommodate misalignments.

FAQs About Plain Bore Yokes

What is the primary function of a plain bore yoke?
The primary function is to connect a shaft to a universal joint, allowing for the transfer of torque while accommodating angular misalignment between components.

How do I select the right size plain bore yoke for my application?
Measure the shaft diameter accurately and refer to our dimensional table. Consider factors like torque requirements, operating environment, and material compatibility to ensure optimal performance.

Can plain bore yokes be used in high-speed applications?
Yes, but it depends on the balance and material. Our yokes are dynamically balanced for speeds up to 10,000 RPM, but always check the specifications for your specific model and application needs.

What maintenance is required for plain bore yokes?
Regular inspection for wear, corrosion, or damage is recommended. Lubrication may be needed depending on the joint type; follow the manufacturer's guidelines for intervals and lubricants.

Are there custom options available for plain bore yokes?
Yes, we offer customization in terms of bore size, material, and special coatings. Contact our support team with your requirements for a tailored solution.

How does a plain bore yoke differ from a splined yoke?
A plain bore yoke has a smooth, cylindrical bore for mounting, while a splined yoke features internal splines that engage with splines on the shaft, allowing for axial movement and higher torque capacity in some cases.

What industries commonly use plain bore yokes?
They are prevalent in automotive driveshafts, industrial machinery, agricultural equipment, marine applications, and any system requiring reliable power transmission with minimal vibration.

How do I install a plain bore yoke properly?
Ensure the shaft and bore are clean and free of debris. Use appropriate tools for pressing or sliding the yoke onto the shaft, and secure it with set screws or keyways as per design. Always follow torque specifications for fasteners.

What are the signs of a failing plain bore yoke?
Common signs include unusual noises (e.g., clunking or grinding), vibration, visible wear or corrosion, and excessive play in the connection. Address these issues promptly to prevent system failure.

Can plain bore yokes be reused after removal?
It depends on the condition. If there is no significant wear, damage, or deformation, they can be reused. However, always inspect thoroughly and replace if any doubts arise about integrity.

View as

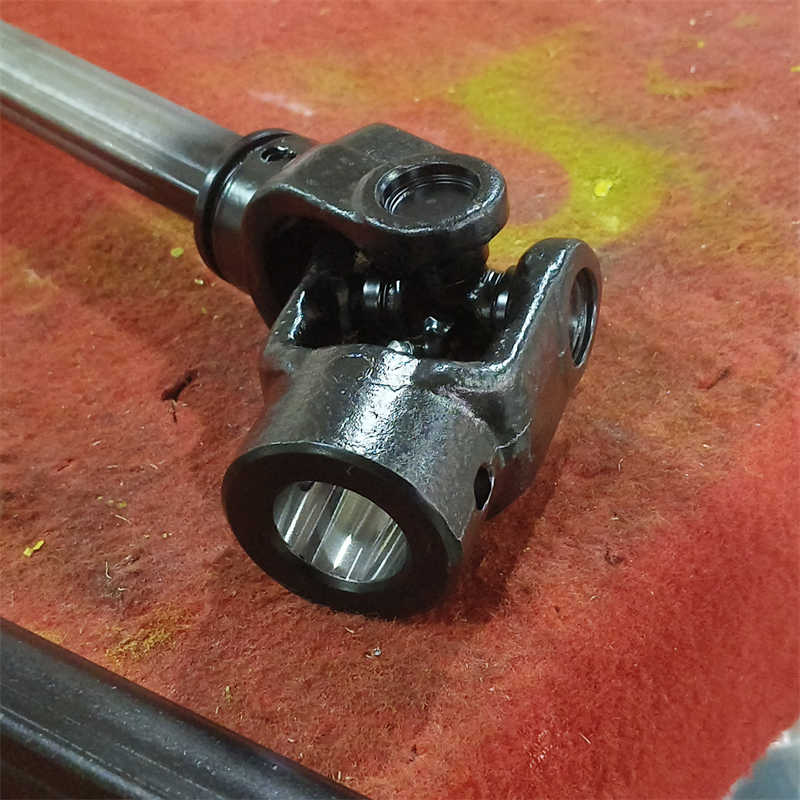

1.05C30 Agriculture Tractor Part Plain Bore Yoke Pto Shaft Forgings Yoke From China

1.05C30 Agriculture Tractor Part Plain Bore Yoke Pto Shaft Forgings Yoke From China

Discover the 'Raydafon' 1.05C30 Agriculture Tractor Part Plain Bore Yoke Pto Shaft Forgings Yoke, a premium solution designed for seamless power transmission in your agricultural machinery. Crafted from high-quality materials, this yoke stands out for its durability, precision engineering, and compatibility with various tractor models. Ideal for farmers and agricultural professionals, it ensures a reliable performance in the most demanding farming operations. Experience the difference with 'Raydafon' – where strength meets innovation. Say goodbye to inefficiency and embrace a smoother, more productive farming experience with our uniquely designed yoke, setting new standards in the agriculture industry.

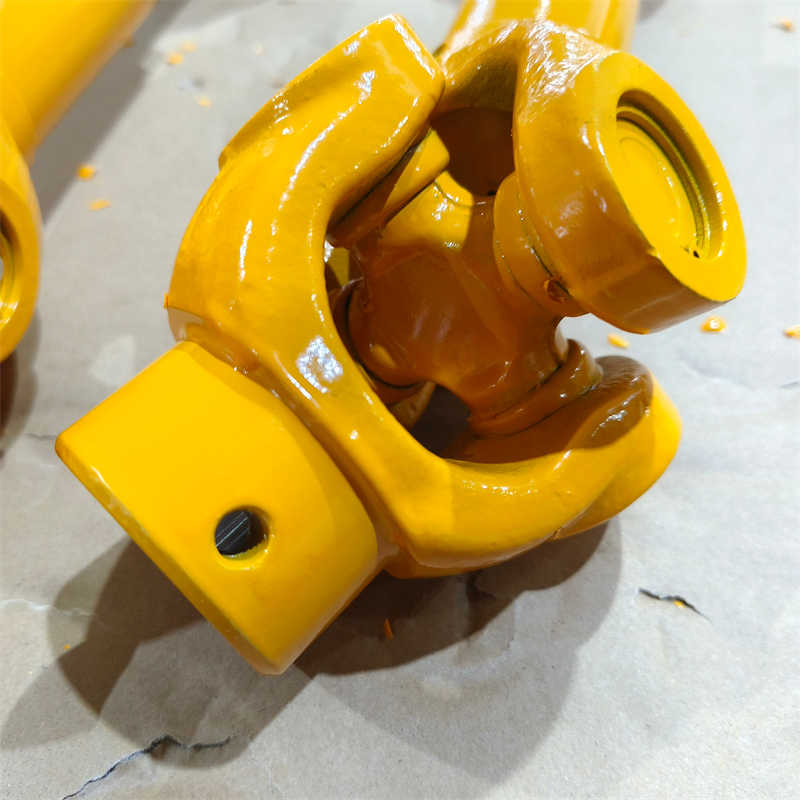

High Transmission Efficiency Round Yoke Plain Bore Yoke Keyway for Cultivators Tractors

High Transmission Efficiency Round Yoke Plain Bore Yoke Keyway for Cultivators Tractors

Boost your cultivators and tractors' performance with the 'Raydafon High Transmission Efficiency Round Yoke Plain Bore Yoke Keyway'. Designed for durability and seamless power transmission, this yoke features a plain bore and keyway for a secure fit, ensuring your machinery operates at peak efficiency. Ideal for farmers and agricultural professionals, it promises to enhance your equipment's reliability and reduce downtime. Experience the difference with Raydafon's superior engineering, crafted to meet the demands of heavy-duty use. Its unique design offers unmatched transmission efficiency, setting it apart from competitors. Trust Raydafon to keep your operations running smoothly.

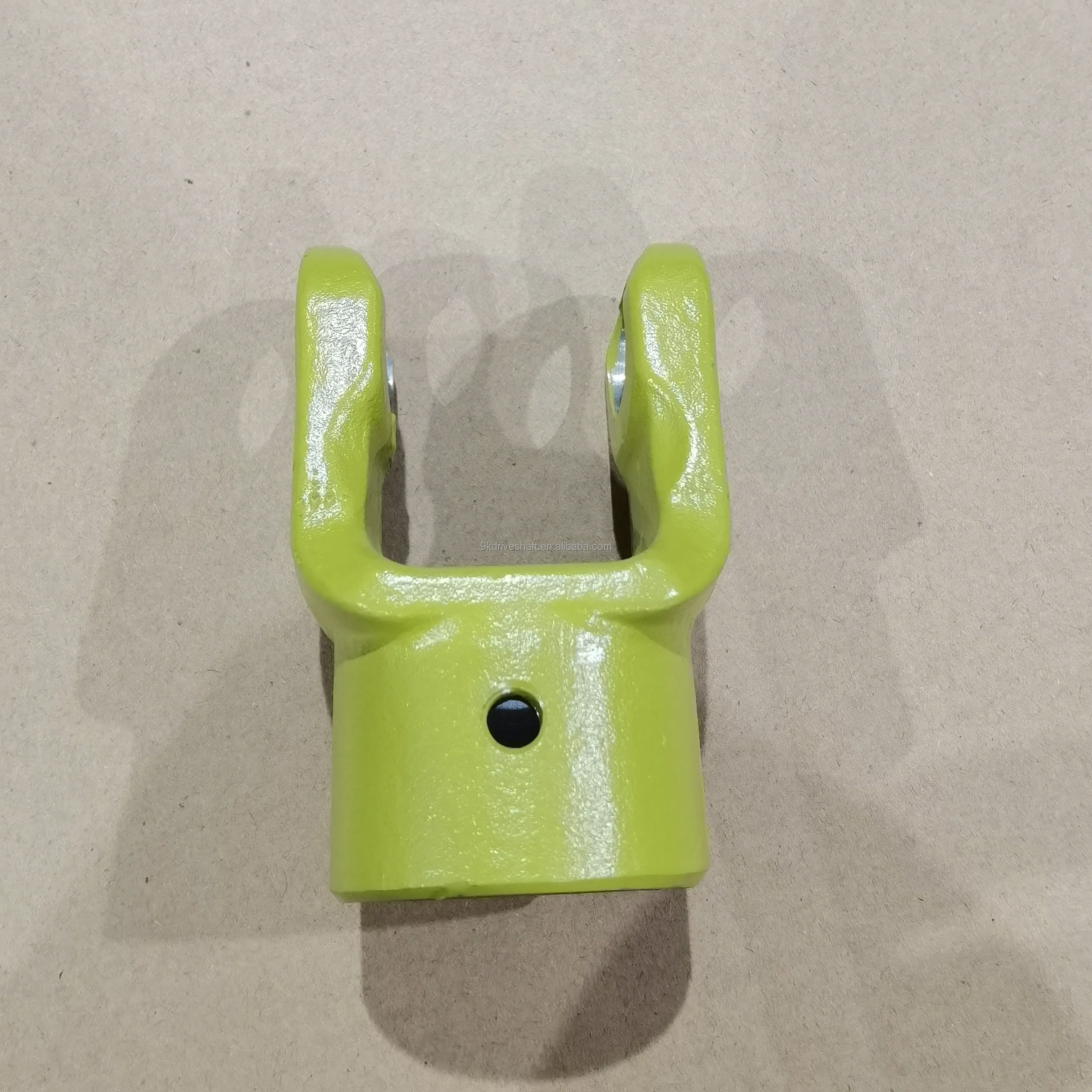

Driveshaft PTO Keyway 1.05C30 Plain Bore Yoke Shaft Yoke for Agricultural Machine Tractor Parts

Driveshaft PTO Keyway 1.05C30 Plain Bore Yoke Shaft Yoke for Agricultural Machine Tractor Parts

Upgrade your agricultural machinery with the Raydafon Driveshaft PTO Keyway 1.05C30 Plain Bore Yoke Shaft Yoke, a must-have for tractor parts enthusiasts. Designed for durability and precision, this yoke shaft features a high-quality plain bore and keyway design, ensuring a perfect fit and seamless power transmission for your agricultural equipment. Ideal for farmers and agricultural professionals, it promises to enhance your machinery's performance, reduce downtime, and increase productivity. Its unique design and superior material make it stand out from the competition, offering reliability when you need it the most. Choose Raydafon for a solution that brings efficiency and peace of mind to your farming operations.

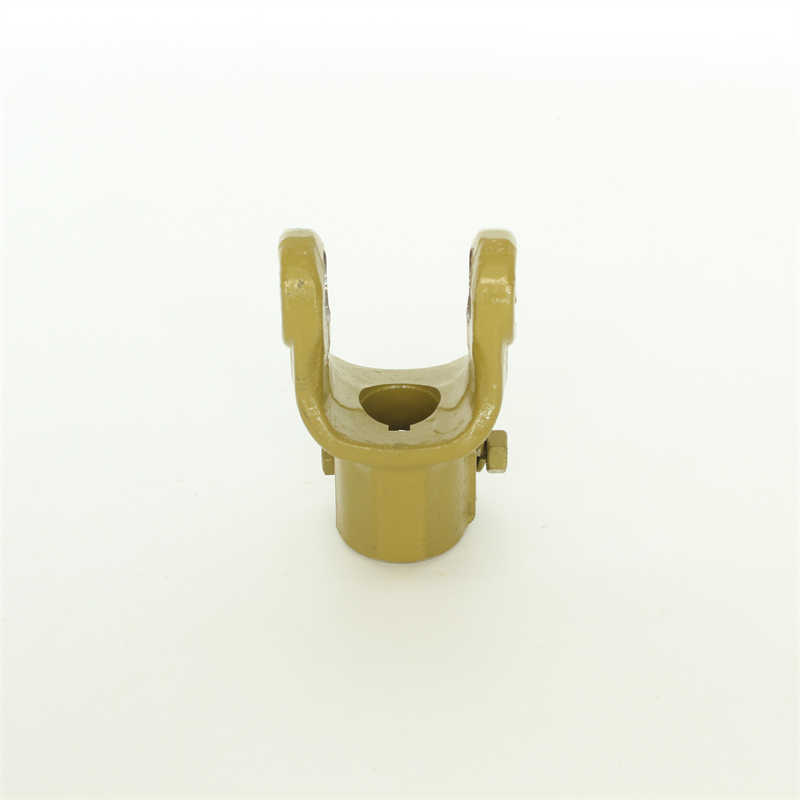

Plain Bore Yoke-C PTO Driveshaft - Single Hole Keyway Yoke for Agricultural Machinery

Plain Bore Yoke-C PTO Driveshaft - Single Hole Keyway Yoke for Agricultural Machinery

Discover the Raydafon Plain Bore Yoke-C PTO Driveshaft, a robust and reliable solution designed for the demanding needs of agricultural machinery. Crafted with precision, this single hole keyway yoke ensures seamless power transmission, enhancing your equipment's efficiency and durability. Its superior design and high-quality materials stand up to the toughest conditions, making it the perfect choice for farmers and agricultural professionals seeking reliability and performance. Experience the difference with Raydafon – where innovation meets tradition in agricultural machinery. Upgrade your setup today and feel the confidence that comes with unmatched quality and engineering excellence.

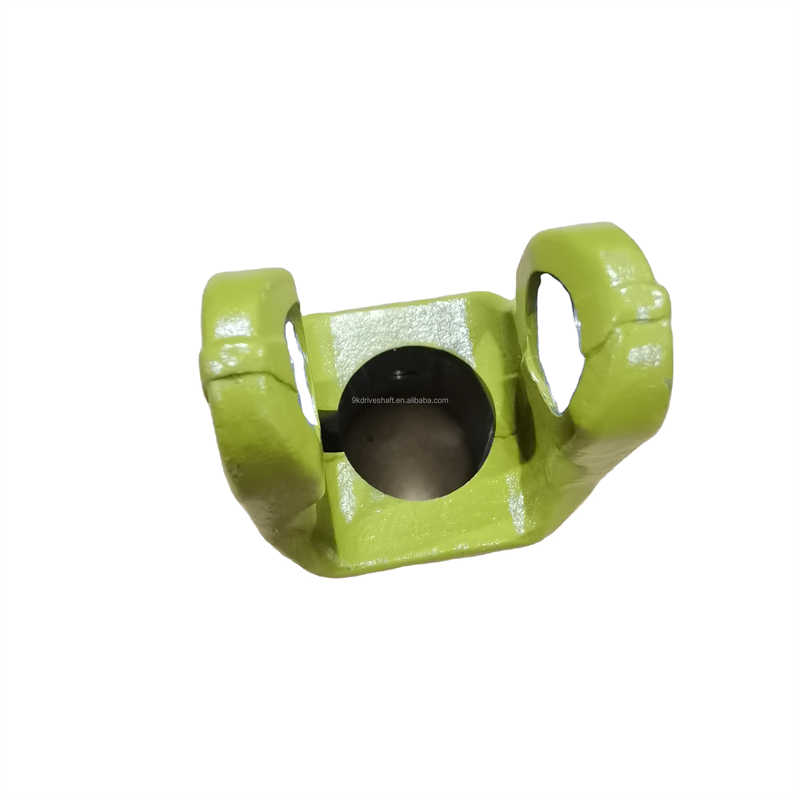

Agricultural PTO Shaft Yoke-C - Plain Bore Single Hole with Keyway for Tractor Implements

Agricultural PTO Shaft Yoke-C - Plain Bore Single Hole with Keyway for Tractor Implements

The Raydafon Agricultural PTO Shaft Yoke-C is a must-have for farmers and agricultural professionals seeking reliability and efficiency in their tractor implements. Featuring a plain bore single hole with keyway design, this yoke ensures a secure and seamless connection, enhancing the performance of your machinery. Crafted from high-quality materials, it stands out for its durability and superior design, making it a perfect fit for heavy-duty use. Whether you're tending to large fields or managing small farm tasks, the Raydafon PTO Shaft Yoke-C promises to elevate your agricultural operations, saving you time and reducing downtime. Its unique keyway feature offers an added layer of security, setting it apart from standard yokes. Experience the difference with Raydafon – where innovation meets practicality in agriculture.
Custom Orange PTO Driveshaft T1-1.05A2 – 1.05C20 with Plain Bore Yoke for Tractor Implements

Custom Orange PTO Driveshaft T1-1.05A2 – 1.05C20 with Plain Bore Yoke for Tractor Implements

Discover the Raydafon Custom Orange PTO Driveshaft T1-1.05A2 – 1.05C20, a must-have for tractor implement enthusiasts. Designed for durability and performance, this driveshaft features a plain bore yoke for seamless compatibility with a wide range of tractor implements. Its robust construction ensures longevity, while the distinctive orange color adds a touch of visibility and style to your equipment. Whether you're a professional farmer or a hobbyist, the Raydafon PTO Driveshaft elevates your machinery's efficiency, making every task smoother and more reliable. Stand out from the crowd with a product that combines functionality with a unique aesthetic appeal, solving your power transmission needs with unmatched precision.
