SD Double Joint

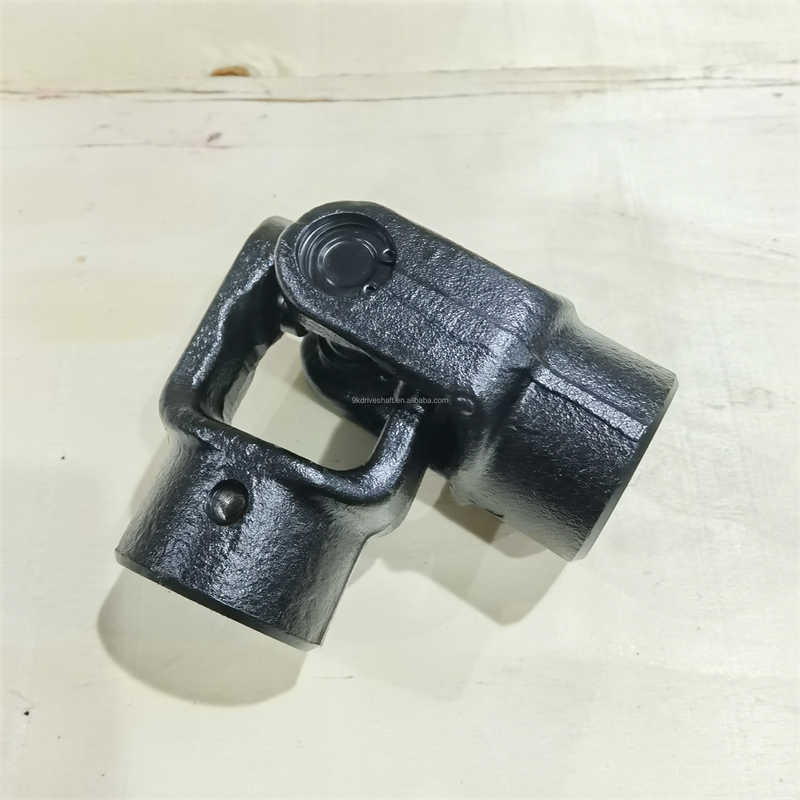

Introducing the SD Double Joint: Precision Engineering for Demanding Applications

The SD Double Joint represents a breakthrough in mechanical joint technology, designed to deliver unmatched flexibility, durability, and performance in a wide range of industrial and automotive applications. Engineered with high-grade materials and subjected to rigorous testing, this joint ensures smooth torque transmission even under extreme conditions. Its double articulation design allows for greater angular movement and compensates for misalignments, reducing wear on connected components and extending equipment lifespan. Whether used in heavy machinery, robotics, or power transmission systems, the SD Double Joint offers reliability that professionals trust.

Detailed Product Specifications

Below are the key parameters of the SD Double Joint, presented for clarity and precision:

  • Material Composition: Forged alloy steel with zinc-nickel plating for corrosion resistance.
  • Operating Temperature Range: -40°C to 120°C (-40°F to 248°F).
  • Maximum Torque Capacity: 500 Nm (369 lb-ft).
  • Angular Misalignment Tolerance: Up to 45 degrees.
  • Weight: 2.5 kg (5.5 lbs) per unit.
  • Lubrication Type: Grease-filled with silicone-based lubricant for maintenance-free operation.
  • Standards Compliance: Meets ISO 9001 and ASTM A276 specifications.

Performance Data Table

Parameter Specification Test Condition
Rated Speed 3000 RPM At 20°C ambient temperature
Peak Load Capacity 750 Nm Short-term overload
Service Life 10,000 hours Under continuous operation
Vibration Damping Up to 30% reduction Based on ISO 10816 standards

Installation and Maintenance Guidelines

Proper installation is crucial for optimal performance of the SD Double Joint. Ensure shafts are aligned within specified tolerances during mounting. Use recommended torque values for fasteners—typically 80-100 Nm for M12 bolts. Regular visual inspections every 500 operating hours can detect early signs of wear or misalignment. The joint is pre-lubricated and requires no additional maintenance under normal conditions, but in high-stress environments, consider relubrication after 2,000 hours. Always refer to the manufacturer's manual for specific instructions tailored to your application.

Frequently Asked Questions (FAQ)

What is the primary advantage of using the SD Double Joint over single joints?

The SD Double Joint offers double articulation, which allows for higher angular misalignment compensation and reduces stress on connected drivetrain components, leading to longer service life and smoother operation in dynamic systems.

Can the SD Double Joint be used in underwater applications?

No, the standard model is not designed for submersion. While it has corrosion-resistant plating, prolonged exposure to water can compromise performance. For aquatic environments, consider our specialized sealed variant with IP68 rating.

What is the recommended storage condition for the SD Double Joint?

Store in a dry, cool place away from direct sunlight and humidity. Temperature should remain between -20°C and 40°C to prevent material degradation. Keep in original packaging until installation to avoid contamination.

How do I determine the correct size of SD Double Joint for my machinery?

Match the joint based on shaft diameter, torque requirements, and angular movement needs. Refer to our sizing chart available in the product documentation, or consult with our technical support team with details of your application for personalized recommendations.

Is the SD Double Joint compatible with high-speed rotational systems?

Yes, it is rated for speeds up to 3000 RPM, but ensure proper balancing and alignment during installation. For applications exceeding this speed, contact us for custom solutions designed for higher RPM operations.

View as

1.05.C25 Cardan Joint Transmission SD DOUBLE JOINT Agricultural Pto Shaft Parts

1.05.C25 Cardan Joint Transmission SD DOUBLE JOINT Agricultural Pto Shaft Parts

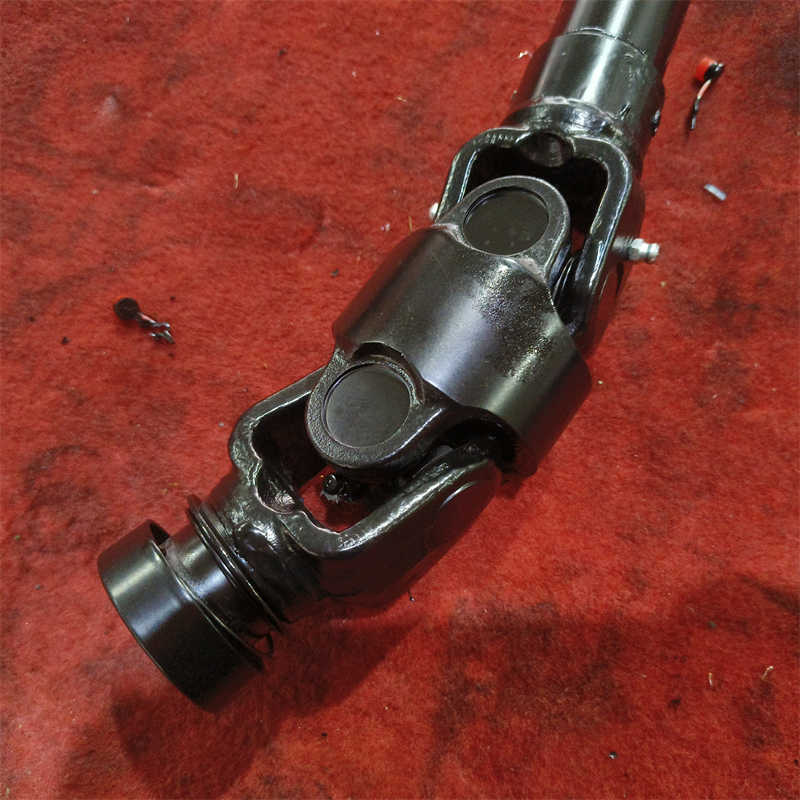

Elevate your agricultural machinery with the Raydafon 1.05.C25 Cardan Joint Transmission SD DOUBLE JOINT Agricultural Pto Shaft Parts. Designed for durability and efficiency, this PTO shaft part ensures seamless power transmission between tractors and implements, thanks to its high-quality materials and precision engineering. Perfect for farmers and agricultural professionals, it stands out for its robust construction and reliability in demanding conditions. Experience the difference with smoother operations and reduced downtime. Its unique double joint design offers superior flexibility and strength, setting it apart from competitors. Choose Raydafon for a solution that enhances productivity and brings peace of mind to your farming operations.
1.05.C25 Cardan Tractor Pto Shaft Universal Joint Round Yoke SD DOUBLE JOINT Cardan Shaft

1.05.C25 Cardan Tractor Pto Shaft Universal Joint Round Yoke SD DOUBLE JOINT Cardan Shaft

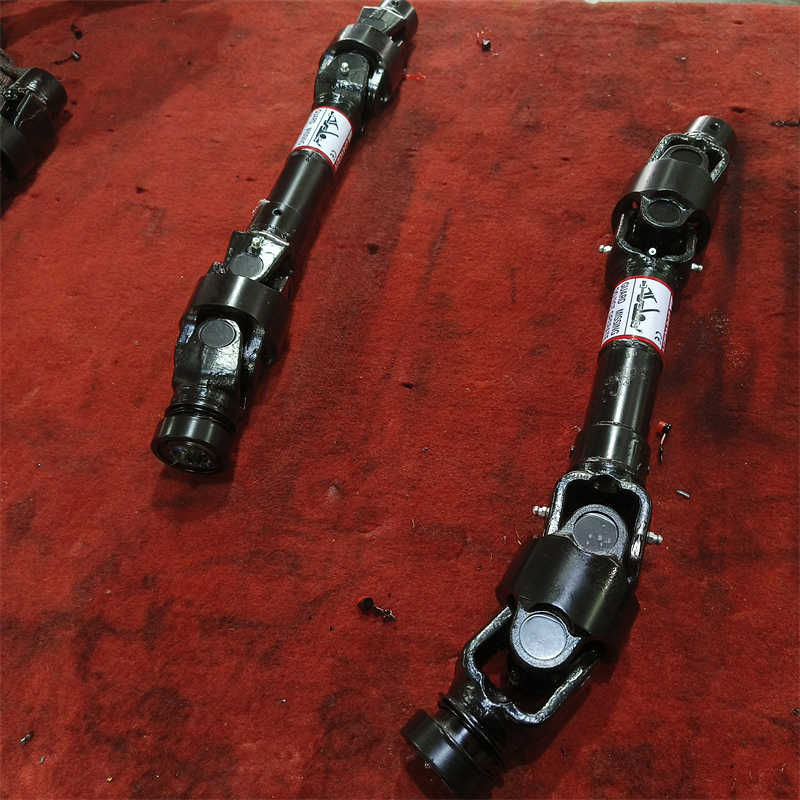

The Raydafon 1.05.C25 Cardan Tractor PTO Shaft Universal Joint Round Yoke SD DOUBLE JOINT Cardan Shaft is a high-performance solution designed for seamless power transmission between tractors and agricultural implements. Crafted with durability in mind, its universal joint and round yoke design ensures smooth operation under heavy loads, making it a reliable choice for demanding farming tasks. Whether you're a professional farmer or a hobbyist, this cardan shaft enhances efficiency and reduces downtime, offering a sense of reliability and peace of mind during critical operations. Its standout feature is the double joint design, providing superior flexibility and strength compared to standard shafts, ensuring a longer lifespan and better performance. Choose Raydafon for a product that combines innovation with practicality, designed to meet the rigorous demands of modern agriculture.
High Quality Factory Price PTO Shaft Gear Tube with SD Double Joint for Agricultural Machinery Parts & Tractor Parts

High Quality Factory Price PTO Shaft Gear Tube with SD Double Joint for Agricultural Machinery Parts & Tractor Parts

Discover the Raydafon High Quality PTO Shaft Gear Tube with SD Double Joint, the ultimate solution for your agricultural machinery and tractor parts needs. Crafted for durability and performance, this product boasts superior material quality and innovative design, ensuring seamless power transmission and longevity. Ideal for farmers and agricultural professionals, it transforms your machinery's efficiency, reducing downtime and enhancing productivity. Stand out with its unique SD Double Joint technology, offering flexibility and strength beyond standard options. Experience the difference with Raydafon – where reliability meets innovation.
PTO Shaft G SERIES with SD Double Joint for Agricultural Machinery Parts & Tractor Parts

PTO Shaft G SERIES with SD Double Joint for Agricultural Machinery Parts & Tractor Parts

Upgrade your agricultural machinery with the Raydafon PTO Shaft G SERIES with SD Double Joint, a powerhouse of durability and efficiency. Designed for tractors and agricultural machinery, this PTO shaft ensures seamless power transmission, thanks to its high-quality materials and innovative SD Double Joint technology. Whether you're a farmer looking for reliable equipment or a professional in the agricultural sector, this product is your go-to solution for heavy-duty tasks. Experience unmatched performance and peace of mind with a product that stands out for its robustness and precision engineering. Choose Raydafon for a seamless blend of tradition and innovation in every task.
Factory Price PTO Shaft G SERIES with SD Double Joint for Agricultural Machinery Parts & Tractor Parts

Factory Price PTO Shaft G SERIES with SD Double Joint for Agricultural Machinery Parts & Tractor Parts

Discover the Raydafon Factory Price PTO Shaft G SERIES with SD Double Joint, the ultimate solution for your agricultural machinery and tractor parts needs. Crafted for durability and performance, this PTO shaft stands out with its high-quality materials and innovative SD Double Joint design, ensuring smooth operation and extended lifespan. Ideal for farmers and agricultural professionals, it transforms heavy-duty tasks into seamless operations, offering reliability when it matters most. Unlike standard options, Raydafon's PTO shaft guarantees superior strength and flexibility, making it a must-have for those who demand excellence in their equipment. Experience the difference with Raydafon – where power meets precision.
High Quality PTO Shaft G SERIES with SD Double Joint for Agricultural Machinery Parts & Tractor Parts

High Quality PTO Shaft G SERIES with SD Double Joint for Agricultural Machinery Parts & Tractor Parts

Upgrade your agricultural machinery with the Raydafon High Quality PTO Shaft G SERIES featuring an SD Double Joint, designed for durability and efficiency. Perfect for farmers and tractor owners, this PTO shaft ensures smooth power transmission between your tractor and implements, thanks to its high-grade materials and precision engineering. Its standout SD Double Joint offers superior flexibility and reduced vibration, making it ideal for heavy-duty applications. Experience the difference with enhanced performance and longevity. Choose Raydafon for a reliable solution that stands out in the field.
